Hands on

Option 1 (repo)

Open example

./python/01-fundamentals/02-multi-views.ipynb

Option 2 (copy/paste)

Run Jupyter Lab

jupyter lab

Fill and run cells

#1 Views

from trame.app import get_server
from trame.widgets import html, client
from trame.ui.html import DivLayout

server = get_server()

# Main view
with DivLayout(server, height=110) as view_main:  # template_name="main"
    html.Div("Main View a={{a}} b={{b}}")
    client.ServerTemplate(name="view_a")
    client.ServerTemplate(name="view_b")

# view_a
with DivLayout(server, height=50, template_name="view_a") as view_a:
    html.Div("View a={{a}}")
    html.Input(
        type="range",
        min=0,
        max=100,
        step=1,
        v_model=("a", 0),  # Set a default value of 0 to variable "a"
    )

# view_b
with DivLayout(server, height=50, template_name="view_b") as view_b:
    html.Div("View b={{b}}")
    html.Input(
        type="range",
        min=0,
        max=50,
        step=2,
        v_model=("b", 2),  # Set a default value of 0 to variable "b"
    )

#2 Main view

await view_main.ready
view_main

#3 View A

view_a

#4 View B

view_b

Option 3 (Binder)

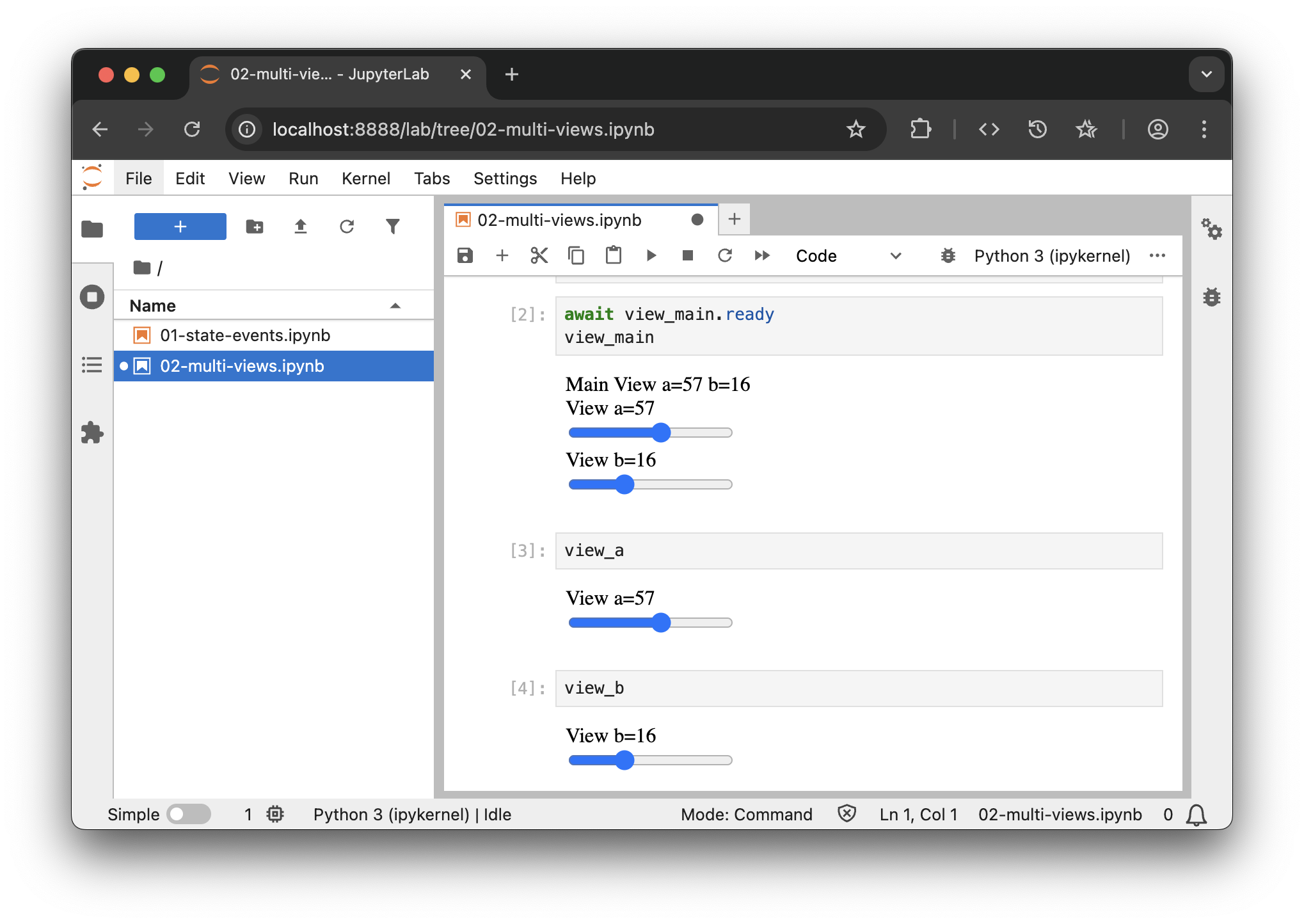

Result
