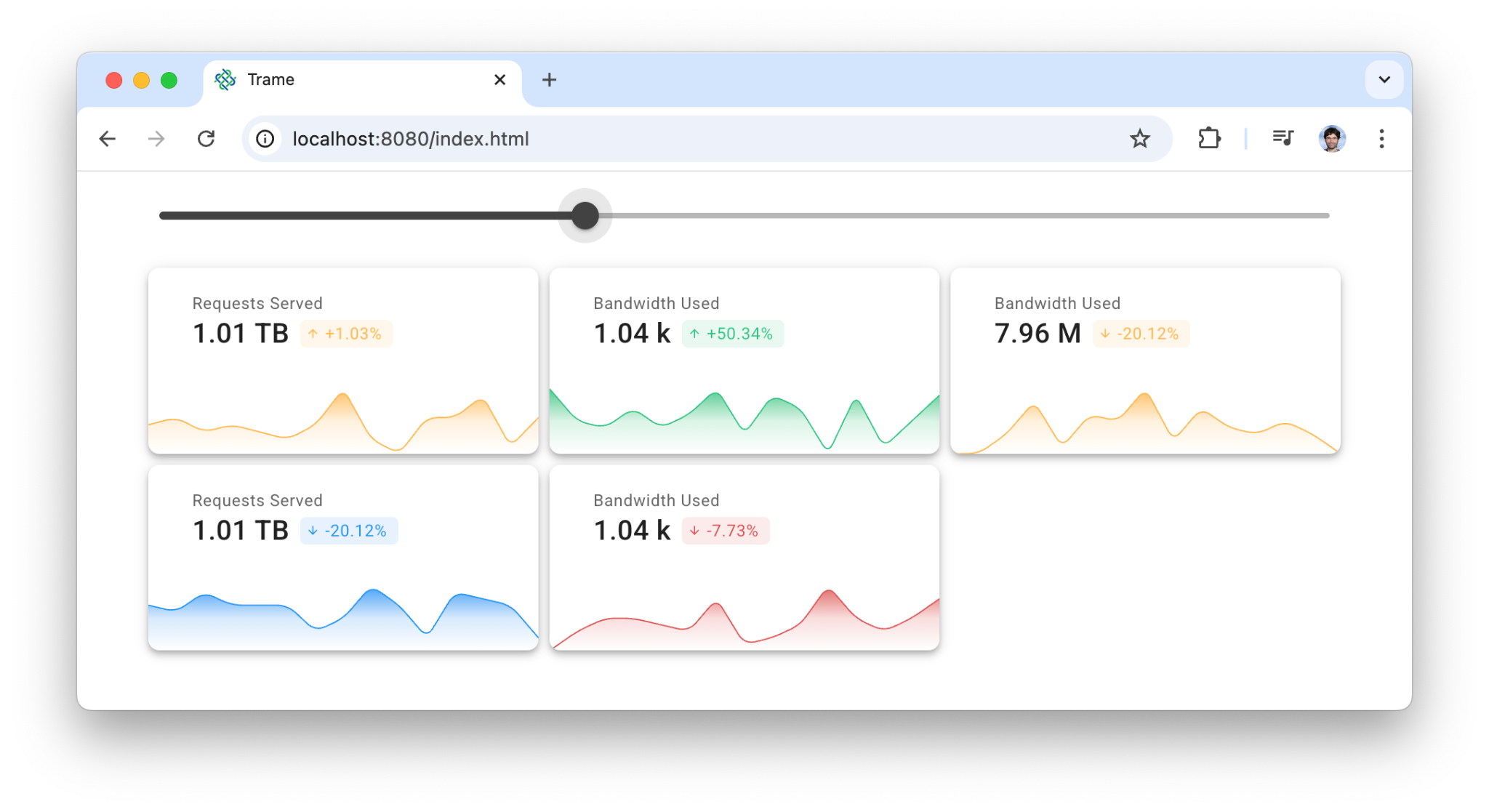

Appearance
Dynamically adjusting the number of cards
Let's expand the code we have to add a slider in order to drive the number of card display.
Run the code
bash
python ./code/03-vuetify/03-dynamic-cards.pyCode content
py
# uv pip install trame-vuetify
from trame.app import get_server
from trame.ui.vuetify3 import VAppLayout
from trame.widgets import html, vuetify3 as v3
# Trame setup -----------------------------------------------------------------
server = get_server()
# ViewModel -------------------------------------------------------------------
state = server.state
state.cards = [
{
"title": "Bandwidth Used",
"value": "1.01 TB",
"change": "-20.12%",
"color": "#da5656",
"data": [5, 2, 5, 9, 5, 10, 3, 5, 3, 7, 1, 8, 2, 9, 6],
},
{
"title": "Requests Served",
"value": "7.96 M",
"change": "-7.73%",
"color": "#2fc584",
"data": [1, 3, 8, 2, 9, 5, 10, 3, 5, 3, 7, 6, 8, 2, 9, 6],
},
]
# View ------------------------------------------------------------------------
with VAppLayout(server):
with v3.VContainer():
with v3.VRow(dense=True):
with v3.VCol(v_for="(card, i) in cards", key="i", cols=12, md=4):
with v3.VCard(elevation=4, rounded="lg"):
with html.Div(classes="pa-4"):
html.Div(
"{{ card.title }}",
classes="ps-4 text-caption text-medium-emphasis",
)
with v3.VCardTitle(classes="pt-0 mt-n1 d-flex align-center"):
html.Div("{{ card.value }}", classes="me-2")
with v3.VChip(
label=True,
color=("card.color",),
prepend_icon=(
"`mdi-arrow-${card.change.startsWith('-') ? 'down' : 'up'}`",
),
size="x-small",
):
with html.Template(raw_attrs=["#prepend"]):
v3.VIcon(size=10)
html.Span("{{ card.change }}", classes="text-caption")
v3.VSparkline(
color=("card.color",),
fill=True,
gradient=(
"[`${card.color}E6`, `${card.color}33`, `${card.color}00`]",
),
height=50,
line_width=1,
min=0,
model_value=("card.data",),
padding=0,
smooth=True,
)
# Start Server ----------------------------------------------------------------
server.start()py
# uv pip install trame-vuetify
import random
from trame.app import get_server
from trame.ui.vuetify3 import VAppLayout
from trame.widgets import html, vuetify3 as v3
# Trame setup -----------------------------------------------------------------
server = get_server()
# ViewModel -------------------------------------------------------------------
state = server.state
TITLES = ["Bandwidth Used", "Requests Served"]
VALUES = ["1.01 TB", "7.96 M", "1.04 k", "0.54 GB"]
CHANGES = ["-20.12%", "-7.73%", "+1.03%", "+50.34%"]
COLORS = ["#da5656", "#2fc584", "#2196F3", "#03A9F4", "#1DE9B6", "#FFB74D"]
def generate_data():
return [random.randint(0, 10) for i in range(15)]
def generate_card():
return {
"title": random.choice(TITLES),
"value": random.choice(VALUES),
"change": random.choice(CHANGES),
"color": random.choice(COLORS),
"data": generate_data(),
}
@state.change("number_of_cards")
def update_cards(number_of_cards, **_):
state.cards = [generate_card() for i in range(number_of_cards)]
# View ------------------------------------------------------------------------
with VAppLayout(server):
with v3.VContainer():
v3.VSlider(
v_model=("number_of_cards", 3),
min=1,
max=12,
step=1,
)
with v3.VRow(dense=True):
with v3.VCol(v_for="(card, i) in cards", key="i", cols=12, md=4):
with v3.VCard(elevation=4, rounded="lg"):
with html.Div(classes="pa-4"):
html.Div(
"{{ card.title }}",
classes="ps-4 text-caption text-medium-emphasis",
)
with v3.VCardTitle(classes="pt-0 mt-n1 d-flex align-center"):
html.Div("{{ card.value }}", classes="me-2")
with v3.VChip(
label=True,
color=("card.color",),
prepend_icon=(
"`mdi-arrow-${card.change.startsWith('-') ? 'down' : 'up'}`",
),
size="x-small",
):
with html.Template(raw_attrs=["#prepend"]):
v3.VIcon(size=10)
html.Span("{{ card.change }}", classes="text-caption")
v3.VSparkline(
color=("card.color",),
fill=True,
gradient=(
"[`${card.color}E6`, `${card.color}33`, `${card.color}00`]",
),
height=50,
line_width=1,
min=0,
model_value=("card.data",),
padding=0,
smooth=True,
)
# Start Server ----------------------------------------------------------------
server.start()diff
2a3,4
> import random
>
13,28c15,18
< state.cards = [
< {
< "title": "Bandwidth Used",
< "value": "1.01 TB",
< "change": "-20.12%",
< "color": "#da5656",
< "data": [5, 2, 5, 9, 5, 10, 3, 5, 3, 7, 1, 8, 2, 9, 6],
< },
< {
< "title": "Requests Served",
< "value": "7.96 M",
< "change": "-7.73%",
< "color": "#2fc584",
< "data": [1, 3, 8, 2, 9, 5, 10, 3, 5, 3, 7, 6, 8, 2, 9, 6],
< },
< ]
---
> TITLES = ["Bandwidth Used", "Requests Served"]
> VALUES = ["1.01 TB", "7.96 M", "1.04 k", "0.54 GB"]
> CHANGES = ["-20.12%", "-7.73%", "+1.03%", "+50.34%"]
> COLORS = ["#da5656", "#2fc584", "#2196F3", "#03A9F4", "#1DE9B6", "#FFB74D"]
29a20,39
>
> def generate_data():
> return [random.randint(0, 10) for i in range(15)]
>
>
> def generate_card():
> return {
> "title": random.choice(TITLES),
> "value": random.choice(VALUES),
> "change": random.choice(CHANGES),
> "color": random.choice(COLORS),
> "data": generate_data(),
> }
>
>
> @state.change("number_of_cards")
> def update_cards(number_of_cards, **_):
> state.cards = [generate_card() for i in range(number_of_cards)]
>
>
32a43,48
> v3.VSlider(
> v_model=("number_of_cards", 3),
> min=1,
> max=12,
> step=1,
> )
