Running a ParaView visualization

With ParaView things are different as ParaView is not available via pip install. Technically it is available via conda and can be used as such, but for this hands-on we will be using ParaView downloaded from Kitware Website.

Steps needed

1. Download ParaView 5.13.3 or newer for your system.
2. Create a new virtual environment compatible with the downloaded ParaView.
3. Install the trame pieces that you need.
4. Run pvpython with the --venv argument so the trame import could be resolved.

Exact command lines and steps

Based on which version of ParaView you've downloaded you will have to create a virtual environment with either python 3.10 or 3.12.

Create venv

uv venv -p 3.10 .pv-venv

Install dependencies

# Activate venv
source .pv-venv/bin/activate

# Install dependencies
uv pip install trame trame-vuetify trame-vtk

Code

from paraview import simple

from trame.app import get_server
from trame.ui.vuetify3 import SinglePageLayout
from trame.widgets import vuetify3 as v3, paraview as pvw
from trame.decorators import TrameApp, change


@TrameApp()
class PVApp:
    def __init__(self, server=None):
        self.server = get_server(server)

        # ParaView
        self.cone = simple.Cone()
        self.representation = simple.Show()
        self.view = simple.Render()

        # GUI
        self._build_ui()

    @property
    def ctrl(self):
        return self.server.controller

    @change("resolution")
    def on_change(self, resolution, **_):
        self.cone.Resolution = resolution
        self.ctrl.view_update()

    def _build_ui(self):
        with SinglePageLayout(self.server, full_height=True) as layout:
            with layout.toolbar as tb:
                tb.density = "compact"
                v3.VSpacer()
                v3.VSlider(
                    v_model=("resolution", 6),
                    min=3,
                    max=60,
                    step=1,
                    density="compact",
                    hide_details=True,
                    classes="mx-4",
                )
                v3.VBtn(
                    icon="mdi-crop-free",
                    click=self.ctrl.view_reset_camera,
                )

            with layout.content:
                with v3.VContainer(fluid=True, classes="ma-0 pa-0 h-100"):
                    with pvw.VtkRemoteView(self.view, interactive_ratio=1) as view:
                        self.ctrl.view_update = view.update
                        self.ctrl.view_reset_camera = view.reset_camera


if __name__ == "__main__":
    app = PVApp()
    app.server.start()

Run

# shortcut to pvpython
export PVPYTHON=/Applications/ParaView-5.13.3.app/Contents/bin/pvpython

# Run from repo
$PVPYTHON --venv .pv-venv ./code/04-visualization-3d/05-paraview-cone.py

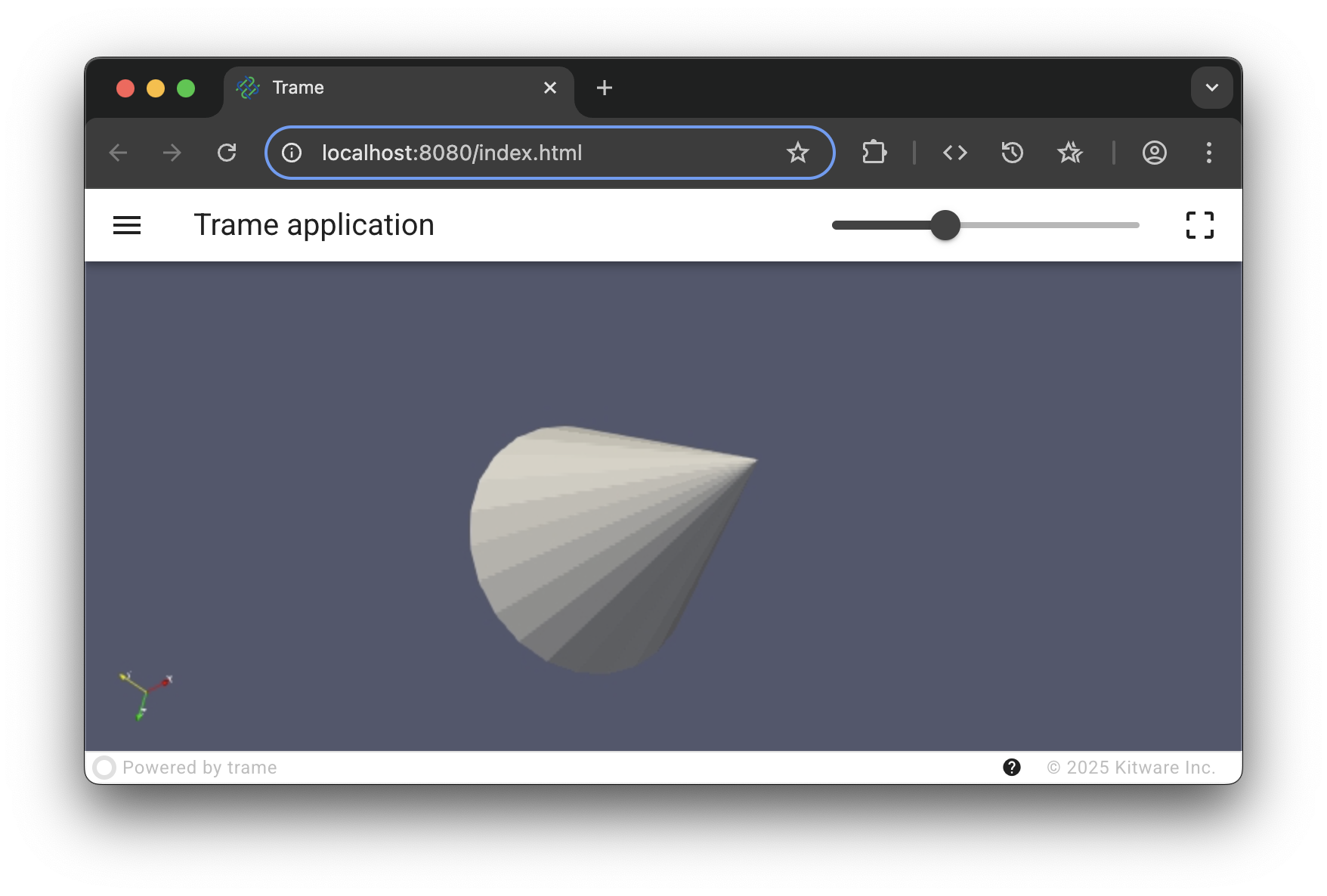

Result
