Docker

Trame applications can easily be deployed in the cloud via docker.

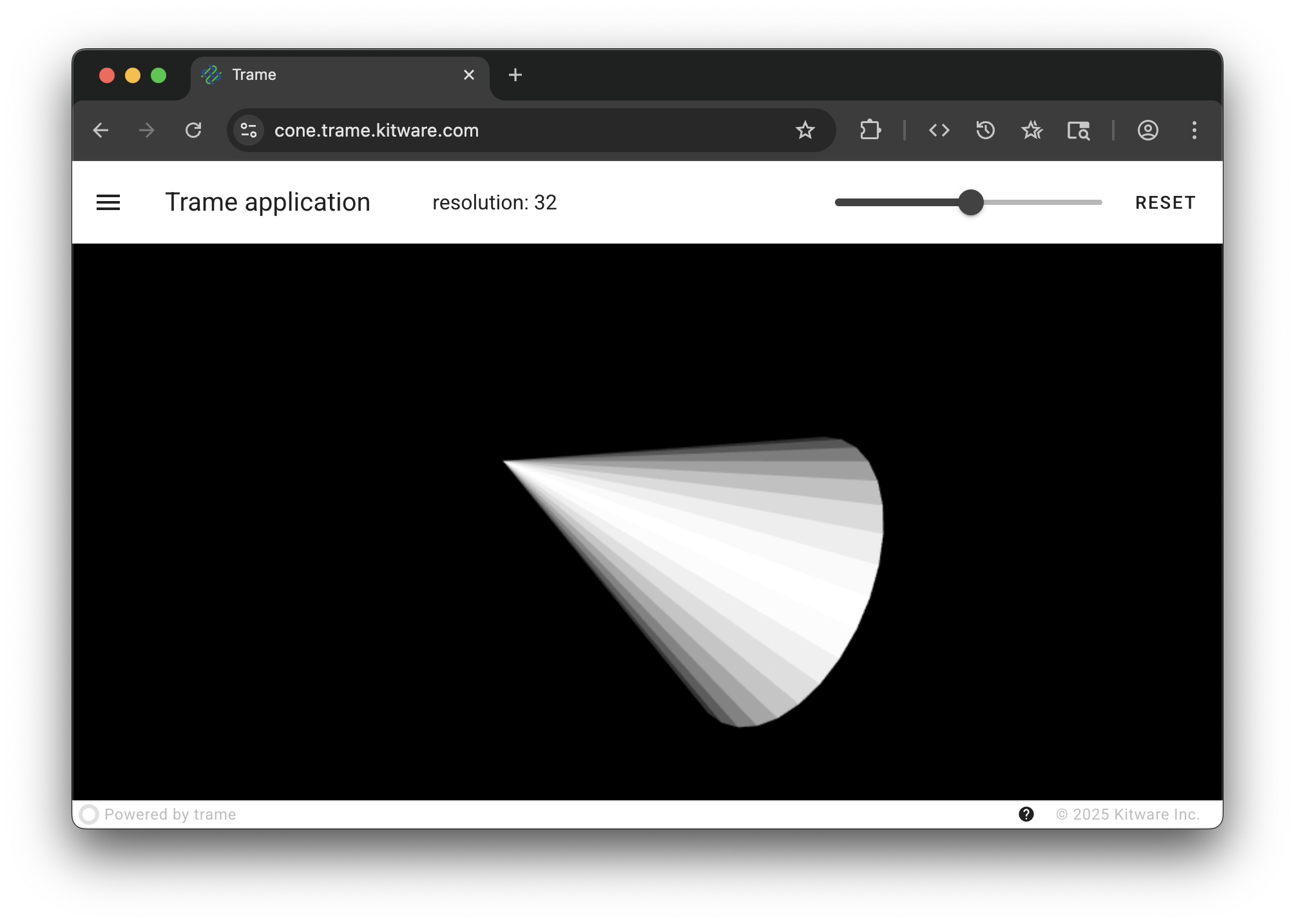

For instance you could deploy the following on a CapRover instance by just running caprover deploy

./

Dockerfilecaptain-definitionapp.py

Dockerfile

FROM kitware/trame

COPY --chown=trame-user:trame-user . /deploy

RUN /opt/trame/entrypoint.sh build

FROM kitware/trame

COPY --chown=trame-user:trame-user . /deploy

RUN /opt/trame/entrypoint.sh build

captain-definition

{
  "schemaVersion": 2,
  "dockerfilePath": "./Dockerfile"
}

{
  "schemaVersion": 2,
  "dockerfilePath": "./Dockerfile"
}

from trame.app import get_server
from trame.widgets import vuetify, vtk as vtk_widgets
from trame.ui.vuetify import SinglePageLayout

from vtkmodules.vtkFiltersSources import vtkConeSource
from vtkmodules.vtkRenderingCore import (
    vtkRenderer,
    vtkRenderWindow,
    vtkRenderWindowInteractor,
    vtkPolyDataMapper,
    vtkActor,
)

# VTK factory initialization
from vtkmodules.vtkInteractionStyle import vtkInteractorStyleSwitch  # noqa
import vtkmodules.vtkRenderingOpenGL2  # noqa

# -----------------------------------------------------------------------------
# Trame initialization
# -----------------------------------------------------------------------------

server = get_server(client_type="vue2")
state, ctrl = server.state, server.controller

state.trame__title = "VTK Remote rendering"

# -----------------------------------------------------------------------------
# VTK code
# -----------------------------------------------------------------------------

DEFAULT_RESOLUTION = 6

renderer = vtkRenderer()
renderWindow = vtkRenderWindow()
renderWindow.AddRenderer(renderer)
renderWindow.OffScreenRenderingOn()

renderWindowInteractor = vtkRenderWindowInteractor()
renderWindowInteractor.SetRenderWindow(renderWindow)
renderWindowInteractor.GetInteractorStyle().SetCurrentStyleToTrackballCamera()

cone_source = vtkConeSource()
mapper = vtkPolyDataMapper()
actor = vtkActor()
mapper.SetInputConnection(cone_source.GetOutputPort())
actor.SetMapper(mapper)
renderer.AddActor(actor)
renderer.ResetCamera()
renderWindow.Render()


@state.change("resolution")
def update_cone(resolution=DEFAULT_RESOLUTION, **kwargs):
    cone_source.SetResolution(resolution)
    ctrl.view_update()


def update_reset_resolution():
    state.resolution = DEFAULT_RESOLUTION


# -----------------------------------------------------------------------------
# GUI
# -----------------------------------------------------------------------------

with SinglePageLayout(server) as layout:
    layout.icon.click = ctrl.view_reset_camera
    layout.title.set_text("Cone Application")

    with layout.toolbar:
        vuetify.VSpacer()
        vuetify.VSlider(
            v_model=("resolution", DEFAULT_RESOLUTION),
            min=3,
            max=60,
            step=1,
            hide_details=True,
            dense=True,
            style="max-width: 300px",
        )
        vuetify.VDivider(vertical=True, classes="mx-2")
        with vuetify.VBtn(icon=True, click=update_reset_resolution):
            vuetify.VIcon("mdi-undo-variant")

    with layout.content:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk_widgets.VtkRemoteView(
                renderWindow,
                ref="view",
            )
            ctrl.view_update = view.update
            ctrl.view_reset_camera = view.reset_camera

# -----------------------------------------------------------------------------
# Main
# -----------------------------------------------------------------------------

if __name__ == "__main__":
    server.start()

from trame.app import get_server
from trame.widgets import vuetify, vtk as vtk_widgets
from trame.ui.vuetify import SinglePageLayout

from vtkmodules.vtkFiltersSources import vtkConeSource
from vtkmodules.vtkRenderingCore import (
    vtkRenderer,
    vtkRenderWindow,
    vtkRenderWindowInteractor,
    vtkPolyDataMapper,
    vtkActor,
)

# VTK factory initialization
from vtkmodules.vtkInteractionStyle import vtkInteractorStyleSwitch  # noqa
import vtkmodules.vtkRenderingOpenGL2  # noqa

# -----------------------------------------------------------------------------
# Trame initialization
# -----------------------------------------------------------------------------

server = get_server(client_type="vue2")
state, ctrl = server.state, server.controller

state.trame__title = "VTK Remote rendering"

# -----------------------------------------------------------------------------
# VTK code
# -----------------------------------------------------------------------------

DEFAULT_RESOLUTION = 6

renderer = vtkRenderer()
renderWindow = vtkRenderWindow()
renderWindow.AddRenderer(renderer)
renderWindow.OffScreenRenderingOn()

renderWindowInteractor = vtkRenderWindowInteractor()
renderWindowInteractor.SetRenderWindow(renderWindow)
renderWindowInteractor.GetInteractorStyle().SetCurrentStyleToTrackballCamera()

cone_source = vtkConeSource()
mapper = vtkPolyDataMapper()
actor = vtkActor()
mapper.SetInputConnection(cone_source.GetOutputPort())
actor.SetMapper(mapper)
renderer.AddActor(actor)
renderer.ResetCamera()
renderWindow.Render()


@state.change("resolution")
def update_cone(resolution=DEFAULT_RESOLUTION, **kwargs):
    cone_source.SetResolution(resolution)
    ctrl.view_update()


def update_reset_resolution():
    state.resolution = DEFAULT_RESOLUTION


# -----------------------------------------------------------------------------
# GUI
# -----------------------------------------------------------------------------

with SinglePageLayout(server) as layout:
    layout.icon.click = ctrl.view_reset_camera
    layout.title.set_text("Cone Application")

    with layout.toolbar:
        vuetify.VSpacer()
        vuetify.VSlider(
            v_model=("resolution", DEFAULT_RESOLUTION),
            min=3,
            max=60,
            step=1,
            hide_details=True,
            dense=True,
            style="max-width: 300px",
        )
        vuetify.VDivider(vertical=True, classes="mx-2")
        with vuetify.VBtn(icon=True, click=update_reset_resolution):
            vuetify.VIcon("mdi-undo-variant")

    with layout.content:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk_widgets.VtkRemoteView(
                renderWindow,
                ref="view",
            )
            ctrl.view_update = view.update
            ctrl.view_reset_camera = view.reset_camera

# -----------------------------------------------------------------------------
# Main
# -----------------------------------------------------------------------------

if __name__ == "__main__":
    server.start()

./setup

apps.ymlrequirements.txt

yml

trame:
  cmd:
    - python
    - /deploy/app.py
    - --host
    - ${host}
    - --port
    - ${port}
    - --authKey
    - ${secret}
    - --server

trame:
  cmd:
    - python
    - /deploy/app.py
    - --host
    - ${host}
    - --port
    - ${port}
    - --authKey
    - ${secret}
    - --server

txt

--extra-index-url https://wheels.vtk.org
trame
trame-vtk
trame-vuetify
vtk-osmesa

--extra-index-url https://wheels.vtk.org
trame
trame-vtk
trame-vuetify
vtk-osmesa
