Layouts ​

To simplify creation of the graphical user interface (GUI) for the web application, trame.ui.vuetify defines layouts objects such as VAppLayout, SinglePageLayout, and SinglePageWithDrawerLayout. In addition to these vuetify layouts we also have a simple trame.ui.html.DivLayout.

All core layouts start with a VApp (Vuetifies v-app) component. The VApp is REQUIRED for all applications. It is the mount point for other Vuetify components and functionality and ensures that it propagates the default application variant (dark/light) to children components, and ensures proper cross-browser support for certain click events in browsers like Safari. VApp should only be rendered within your application ONCE. (More on Vuetify in the next chapter of the tutorial.)

Each of these layouts can be utilized by importing, instantiating, and serving it via the server.start() function.

VAppLayout or fullscreen ​

If you want to experiment with it you can edit 02_layouts/app_cone.py which was the latest cone example we built using the SinglePage layout.

The VAppLayout starts with VApp and exposes the children array where one could add in other desired HTML elements (Vuetify UI Components).

First, add the import to VAppLayout.

from trame.ui.vuetify import VAppLayout

from trame.ui.vuetify import VAppLayout

Second, we instantiate the layout object, create the vtk.VtkLocalView component, and add it directly to its root element using a Vuetify VContainer with arguments descripted in the VTK chapter.

with VAppLayout(server) as layout:
    with layout.root:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk.VtkLocalView(renderWindow)
            ctrl.on_server_ready.add(view.update)

with VAppLayout(server) as layout:
    with layout.root:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk.VtkLocalView(renderWindow)
            ctrl.on_server_ready.add(view.update)

Finally, we start the server

if __name__ == "__main__":
    server.start()

if __name__ == "__main__":
    server.start()

The VAppLayout is really a blank canvas to add your desired Vuetify components.

Running the Application

python 02_layouts/app_cone.py --port 1234
# or
python 02_layouts/solution_FullScreenPage.py --port 1234

python 02_layouts/app_cone.py --port 1234
# or
python 02_layouts/solution_FullScreenPage.py --port 1234

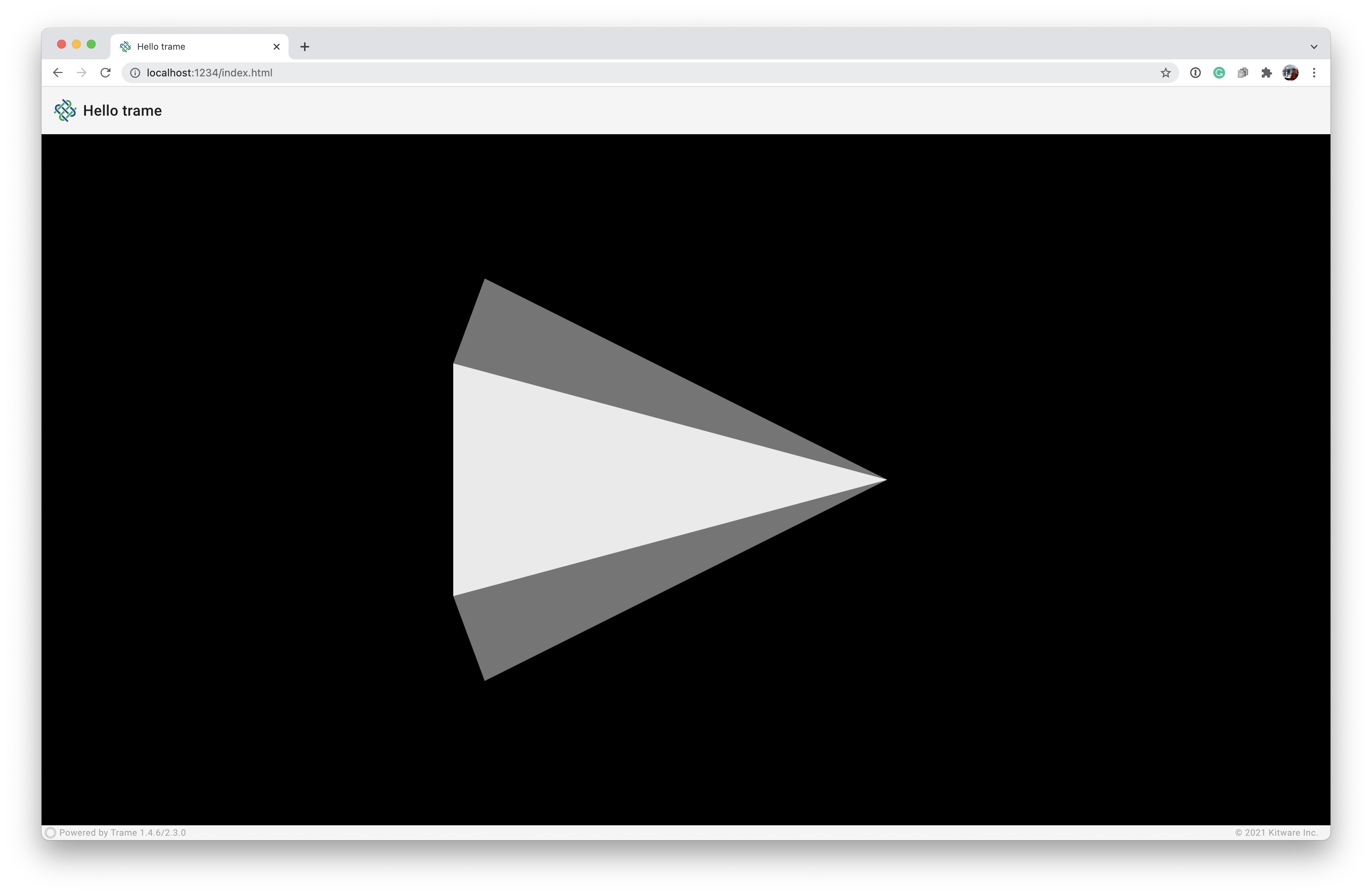

SinglePageLayout ​

The SinglePageLayout extends the VAppLayout with a few predefined components such as icon, title, toolbar, content, and footer.

The icon and title sit on the left-hand side of the toolbar and are customized as necessary. The icon is a VAppBarNavIcon which can be customized by adding a child to it such as a VIcon with a Material Design Icons. The toolbar itself exposes its children array in which one can add components as needed. The footer can be hidden, but currently has trame branding, the progress bar and list of trame modules available with their versions. The content is just a VMain to which you may add your desired Vuetify components.

First, we import the SinglePageLayout class.

from trame.ui.vuetify import SinglePageLayout

from trame.ui.vuetify import SinglePageLayout

Second, we instantiate the layout object, maybe change the title, create the vtk.VtkLocalView component, and add it to the content component's children using a Vuetify VContainer with arguments descripted in the VTK chapter.

with SinglePageLayout(server) as layout:
    layout.title.set_text("Hello trame")

    with layout.content:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk.VtkLocalView(renderWindow)
            ctrl.on_server_ready.add(view.update)

with SinglePageLayout(server) as layout:
    layout.title.set_text("Hello trame")

    with layout.content:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk.VtkLocalView(renderWindow)
            ctrl.on_server_ready.add(view.update)

Finally, we start the server

if __name__ == "__main__":
    server.start()

if __name__ == "__main__":
    server.start()

Running the Application

python 02_layouts/app_cone.py --port 1234
# or
python 02_layouts/solution_SinglePage.py --port 1234

python 02_layouts/app_cone.py --port 1234
# or
python 02_layouts/solution_SinglePage.py --port 1234

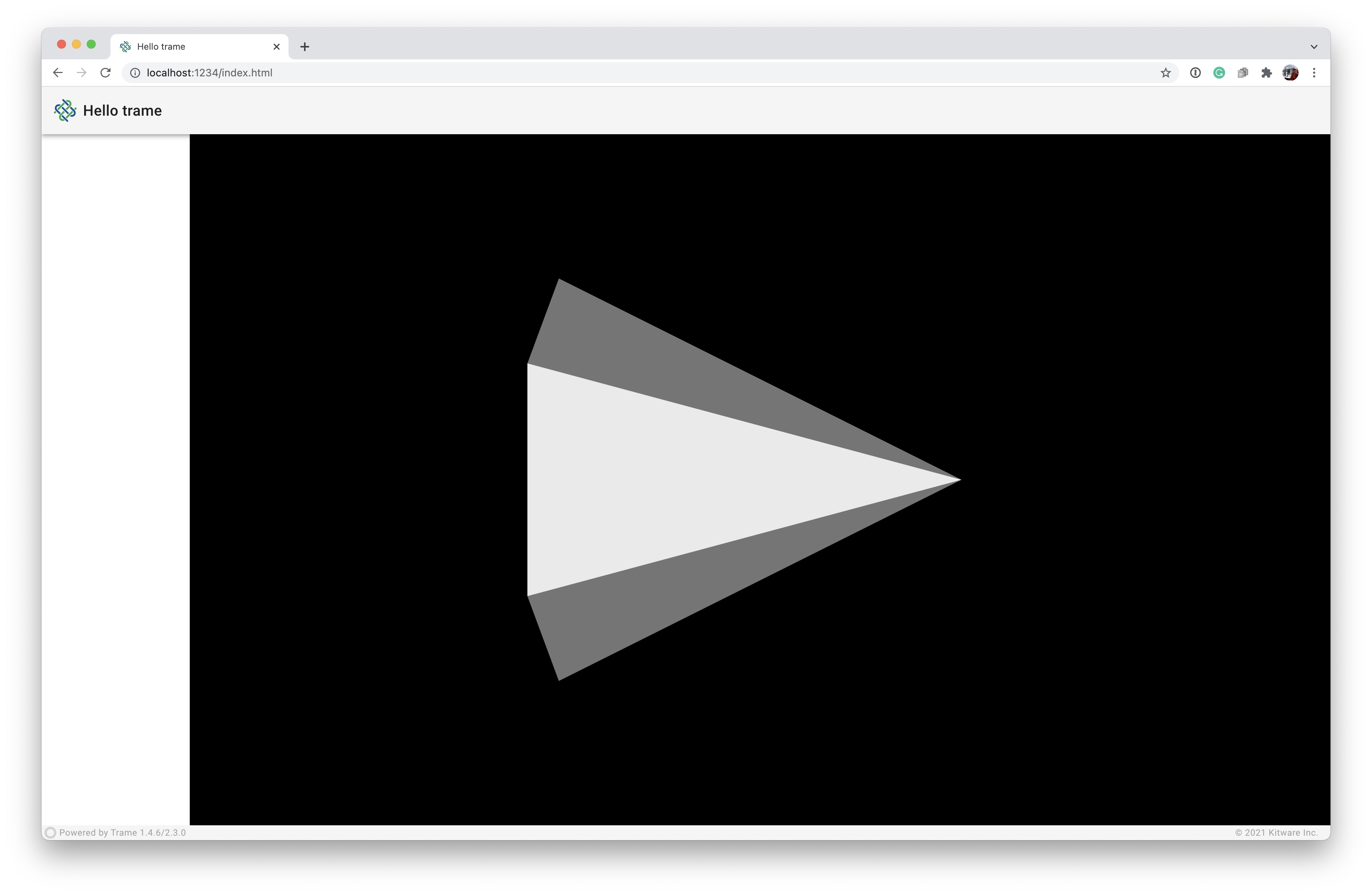

SinglePageWithDrawerLayout ​

The SinglePageWithDrawerLayout extends the SinglePageLayout with a drawer. You can show and hide the drawer by clicking on the application icon on the toolbar. You can use the drawer to add any necessary Vuetify components.

First, we import the SinglePageWithDrawerLayout class.

from trame.ui.vuetify import SinglePageWithDrawerLayout

from trame.ui.vuetify import SinglePageWithDrawerLayout

Second, we instantiate the layout object with access to everything within the SinglePageLayout layout.

with SinglePageWithDrawerLayout(server) as layout:
    layout.title.set_text("Hello trame")

    with layout.content:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk.VtkLocalView(renderWindow)
            ctrl.on_server_ready.add(view.update)

with SinglePageWithDrawerLayout(server) as layout:
    layout.title.set_text("Hello trame")

    with layout.content:
        with vuetify.VContainer(
            fluid=True,
            classes="pa-0 fill-height",
        ):
            view = vtk.VtkLocalView(renderWindow)
            ctrl.on_server_ready.add(view.update)

Finally, we start the server

if __name__ == "__main__":
    server.start()

if __name__ == "__main__":
    server.start()

Running the Application

python 02_layouts/app_cone.py --port 1234
# or
python 02_layouts/solution_SinglePageWithDrawer.py --port 1234

python 02_layouts/app_cone.py --port 1234
# or
python 02_layouts/solution_SinglePageWithDrawer.py --port 1234
